Kona Honzo DL

Kona Honzo DL
  • Color: Gloss Azure Blue
$1,599.99
Color: Gloss Azure Blue
Size: Select size
Please select options Unavailable
Order now and pick up in-store for free

Details

For the hardtail enthusiast, the Honzo DL is a quintessential bike to have in your quiver. Featuring an aluminum frame with geometry derived from the Process 134 it's ready to rip up and down the trails. A short seat tube allows you to run a longer dropper post, and adjustable dropouts allow you to run the bike geared or as a single speed. Sitting squarely between the Honzo and the Honzo ESD – the Honzo DL is the all-round hardtail for any location.

KONA 6061 ALUMINUM
Kona 7005 and 6061 Aluminum alloys are used extensively throughout our fleet of mountain and asphalt bicycles. A tough, durable, light alloy, both Kona 7005 and 6061 deliver fantastic, reliable performance that lasts for thousands of rides. Much of our 7005/6061 tubing is butted and/or formed, meaning the tubing's wall thickness can be increased or decreased, as well as shaped, so we can fine-tune a particular frame's strength and ride characteristics depending on its intended application.

INTERNAL HEADSET
Bearing cups are actually pressed into the frame and are easily removable. An internal headset also reduces stack height, so the height of the stem and bars are more adjustable, giving the rider the best fit possible.

TAPERED HEAD TUBE
More girth at the bottom of the head tube better distributes shock force, prolonging the bearing life of the headset itself and eliminating brake shudder, while providing confident steering performance. The inherent strength of its triangular design also means a stronger steering position and improved balance, giving the rider more control in rough terrain. A zero-stack, tapered head tube also puts strength where the load is going—into the lower headset cup—maximizing bearing durability where it's needed.

TUBELESS COMPATIBLE RIMS
Tubeless rims allow for tires with more puncture resistance; the ability to run lower tire pressure, which provides better tire grip on the trail; lower rolling resistance; and weight savings over traditional tube and tire systems.

12x148mm AXLE
12x142mm, 12x148 and 12x157 rear axle standards provide two major advantages to the Kona rider: the 12mm diameter of the rear axle provides the rear hub and frame with a stiff interface, while the 142/148/157mm outer diameter of the hub allows the wheel to be quickly and properly positioned in the frame before the rear axle is inserted.

Kona trademarks, logos, photos, and videos
are the intellectual property of Kona, and may not be reproduced or used in commerce without the consent of Kona.

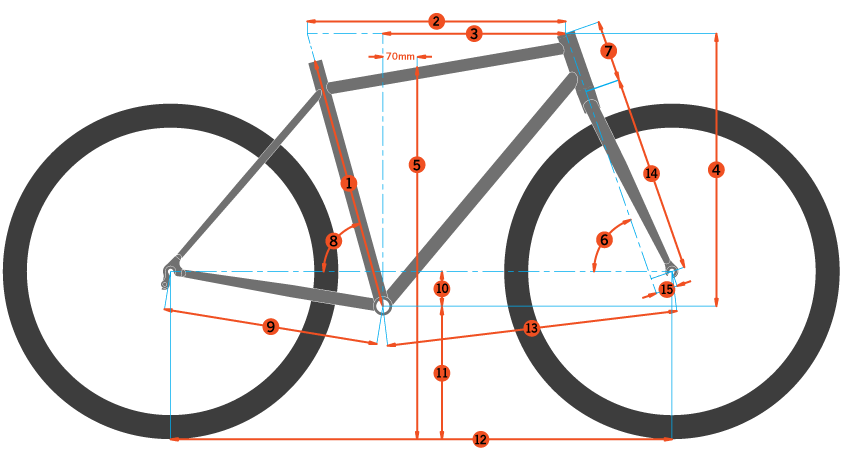

Geometry

Geometry Chart:
Frame SizeSmallMediumLargeX-Large
Seat Tube Length (mm) 385 410 450 485
Top Tube Length (mm) 582 609 637 674
Reach (mm) 425 450 475 510
Stack (mm) 630 639 648 657
Standover (mm) 713 711 710 708
Head Tube Angle 66° 66° 66° 66°
Head Tube Length (mm) 90 100 110 120
Seat Tube Angle 76° 76° 76° 76°
Chainstay Length (mm) 417 417 417 417
Bottom Bracket Drop (mm) 62.5 62.5 62.5 62.5
Bottom Bracket Height (mm) 310 310 310 310
Wheelbase (mm) 1146 1175 1204 1243
Front Center (mm) 736 765 794 833
Fork Length (mm) 551 551 551 551
Fork Offset (mm) 51 51 51 51
Sizes:
Frame SizeHeight (inches)Height (cm)Inseam (inches)Inseam (cm)
X-Small 4'10"-5'1" 147-155cm 24"-27" 61-69cm
Small 5'0"-5'3" 152-160cm 26"-29" 66-74cm
Small, Medium 5'2"-5'7" 157-170cm 27"-30" 69-76cm
Medium 5'6"-5'10" 168-178cm 29"-31" 74-79cm
Medium, Large 5'9"-6'0" 175-183cm 30"-33" 76-84cm
Large, X-Large 5'11"-6'2" 180-188cm 32"-35" 81-89cm
Large, X-Large 6'1"-6'5" 185-196cm 33"-36" 84-91cm

Specs

Frame Kona 6061 Aluminum Butted
Fork RockShox Revelation RC DebonAir 140mm Tapered 110mm Spacing
Rims WTB ST i30 TCS
Hubs Front: Shimano 110x15mm (centerlock)
Rear: Shimano 148x12mm (centerlock)
Spokes Stainless Black 14g
Tires Front: Maxxis Minion DHF EXO TR 3C 29x2.5" WT
Rear: Maxxis Dissector EXO TR 3C 29x2.4" WT
Bottom Bracket PF92
Crankset FSA Comet
Chainrings 32t
Shifters Shimano Deore 12 spd
Rear Derailleur Shimano Deore 12 spd
Cassette/Freewheel Shimano Deore 11-50t 12spd
Chain Shimano Deore 12 spd
Brakes Shimano MT410 Hydraulic
Rotors Front: Shimano RT54 180mm (centerlock)
Rear: Shimano RT54 160mm (centerlock)
Brake Levers Shimano MT410 Hydraulic
Handlebars Kona XC/BC 35
Tape/Grips Kona Key Grip
Stem Kona XC/BC 35
Headset FSA No.57B
Seatpost TranzX Dropper +RAD Internal w/Shimano Lever 31.6mm
Saddle WTB Volt
Pedals Sold separately

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Gloss Azure Blue / Small 841073146277 B22HZD01
Gloss Azure Blue / Medium 841073146284 B22HZD03
Gloss Azure Blue / Large 841073146291 B22HZD05
Gloss Azure Blue / X-Large 841073146307 B22HZD06 210000039586
